Home >>> Products >>> Type 2X two-stage rotary vane series vacuum pump 2X-70 Water Cooling

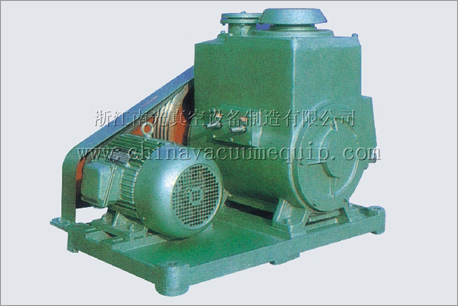

Product Description:
The 2X series vacuum pump is of two-stage structure, its operation performance consists of two parts, high-pressure stage and lowpressure stage. Its suction port is connected with the vacuum container or other vacuum equipments to helps intaking or draining the gas inside the container during operation. When the equipment is in vacuum, the high-pressure stage drain valve will be closed, then the gas suctioned by the high-pressure stage will be transferred to the second stage, after that, the gas will be suctioned and drained through the second stage, so that the vacuum equipment can get a certain extent vacuum. The technical parameter of the pump is 610-2Pa. According to the user's operation requirements, to equip a vacuum booster pump, and this pump is used as a backing pump. Since the booster pump increased suction force, accompanied with the continuous suction of the backing pump, the equipment will obtain higher vacuum percentage.


Features:
1. Wide range of free-air capacities to match specific applications
2. Positive pressure oil system ensures proper lubrication and prevents oil starvation under high gas loads
3. Fast acting inlet valve protects internal components against oil and air contamination if the pump stops while under vacuum
4. Gas ballast valve limits internal condensation; Lets you use pump when condensable vapors are present


Features:

Model
2X-2
2X-4A
2X-8A
2X-8
2X-15A
2X-15
2X-30
2X-70
Item/Pumping Speed(L/S)
2
4
8
15
30
70
Ultimate
Pressure
Gas ballast
closed
Pa
(Torr)
610-2(510-4)
Gas ballast
open
610-1(510-3)
Motor Power(KW)
0.37
0.55
1.1
1.5
3
5.5
Temperature Rise( )
40
Inlet Diameter(mm)
18
25
32
40
60
80
Rotational Speed (r/min)
450
590
520
450
420
Injection Amount of Oil (L)
0.7
1.0
2.0
2.8
3.0
4.2
LW Noise dB(A)
68
68
70
75
78(~70)
80(~75)
Size(cm)
563139
563437
794354
795354
785056
716570
Type of applicable
electromagnetic valve
DDC-JQ25
DDC-JQ40
DDC-JQ65
DDC-JQ80
Weight(kg)
58
55
80
110
232
330
Mode of cooling
Natural cooling
Water
cooling
Natural
cooling
Water cooling
Cooling water amount (L/min)
-
>0.5
-
>0.8
>1
>2


1. Entry-mouth 2. Seal rubber circle 3. Percolation net 4. V belt rotary table 5. Front end-plates
6. High-pressure rotary vane7. High-pressure rotor 8. Axis 9. Front axis 10. The oil sealed chamber
11. Spring 12. Onentation lock 13. Exhaust cover 14. Exhaust cushion 15. Block-oil-net 16. Pump body
17. Septi-board 18.Back end-plates 19. Low-pressure rotor 20. Water tie-in 21. Feather key 22. Low rotary vane 23. Water cover 24. Exhaust valve 25. Observation mirror 26. Aeration-valve27. Oil-escape-plug
[ First ]  [ Prev ]  [ Next ]   [ Last
